Quick Start
To see how IVCAP works, we will order the simple hello-world service and view the computed artifacts.
The steps required are:
- find the service
- ... then order it
- ... check on progress
- ... list created artifacts
- ... download image
But before we can proceed, please ensure that the following prerequisites¶ are in place and that you an successfully authenticate with your respective IVCAP deployment. When all that is done, proceed to the Our First Order section below.
Prerequisites¶
Before you start you need to have access to an IVCAP deployment and have the ivcap-cli tool installed (see instructions).
Authenticate
Almost all interactions with IVCAP require an authorisation token. To obtain this token, use the ivcap context login command:
% ivcap context login
█▀▀▀▀▀█ ▀█ ▄▀▄▀▀ ▄▄▀▄ █▀▀▀▀▀█
█ ███ █ █ █▀ ▀█▀ █ ▀▀█ █ ███ █
█ ▀▀▀ █ █ ▀▀▄▀▀▀▀█▀ ▀█ ▀▀ █ ▀▀▀ █
▀▀▀▀▀▀▀ █▄█ █ █ █ █ █▄█ ▀ ▀▀▀▀▀▀▀
█ ██▀▀▀▄▄▄ ▄ ██ ██▄█▀▄█▄█ ██▀██ ▄
█▀▄▄ ▀▀ █ █▀█▀▀▀█▄ █ █ ▄ █▄█▀
...
To login to the IVCAP Service, please go to: https://id-provider.com/activate?user_code=....
or scan the QR Code to be taken to the login page
Waiting for authorisation...
Our First Order
As mentioned above, an IVCAP deployment provides a set of services which a user can order. An order in this context is a request to execute the steps defined by a service and optionally customised by service specific parameters provided by the user at the time of order. The order execution will usually create a set of artifacts (aka dataset, image, table) which the user can download or use as input to another order.
An analogy would be a designer shoe store, which lists a set of shoe designs (aka services) were a user can order a specific design, additionally defining shoe size or color. This will trigger the manufacturing of a new pair of shoes (aka artifact) based on the specific design as well as the user specifications of shoe size and color.
For our first order, we will request the creation of an image with the obligatory "Hello World" message. As mention above the following steps required are:
- find the service
- ... then order it
- ... check on progress
- ... list created artifacts
- ... download image
Find the Service
So let's start with finding the service:
% ivcap service list --filter "name~='hello-world-python'"
+----+--------------------+--------------------------------+
| ID | NAME | ACCOUNT |
+----+--------------------+--------------------------------+
| @1 | hello-world-python | urn:ivcap:account:45a06508-... |
+----+--------------------+--------------------------------+
We can get more information on it with:
% ivcap service get @1
ID urn:ivcap:service:8e048dfc-... (@1)
Name hello-world-python
Description A simple IVCAP service using the IVCAP Service SDK to create an ...
Account ID urn:ivcap:account:45a06508-...
Parameters ┌────────────────┬────────────────────────┬──────────┬─────────┬──────────┐
│ NAME │ DESCRIPTION │ TYPE │ DEFAULT │ OPTIONAL │
├────────────────┼────────────────────────┼──────────┼─────────┼──────────┤
│ msg │ Message to display. │ string │ │ false │
├────────────────┼────────────────────────|──────────┼─────────┼──────────┤
│ background-img │ Image artifact to use │ artifact │ │ true │
│ │ as background. │ │ │ │
├────────────────┼──────────────────────-─┼──────────┼─────────┼──────────┤
│ width │ Image width. │ int │ 640 │ false │
├────────────────┼────────────────────────┼──────────┼─────────┼──────────┤
│ height │ Image height. │ int │ 480 │ false │
└────────────────┴────────────────────────┴──────────┴─────────┴──────────┘
Order the Service
As we can see from the parameters listing we can not only set the message, but also choose an optional background image, as well as the width and height. So let's be not too creative with the message, but a bit more playful with the background.
% ivcap order create -n "test image order #1" urn:ivcap:service:8e048dfc-4605-503e-85a4-03c77f98bf2e \
msg="Hello World" \
background-img=https://wallpaperaccess.com/full/4482737.png
Order 'urn:ivcap:order:394a877c-1231-4f4f-93f0-93bf738a49e5' with status 'pending' submitted.
We have now successfully ordered the service with order ID urn:ivcap:order:394a877c-1231-4f4f-93f0-93bf738a49e5
Check on Progress
The ivcap order get urn:ivcap:order:... command allows us to monitor the
status of an order.
% ivcap order get urn:ivcap:order:394a877c-1231-4f4f-93f0-93bf738a49e5
ID urn:ivcap:order:394a877c-1231-4f4f-93f0-93bf738a49e5 (@5)
Name test image order #1
Status executing
Ordered 2 minutes ago
Service hello-world-python (@6)
Account ID urn:ivcap:account:45a06508-...
Parameters ┌─────────────────────────────────────────────────────────────────┐
│ msg = Hello World │
│ background-img = https://wallpaperaccess.com/full/4482737.png │
│ width = 640 │
│ height = 480 │
└─────────────────────────────────────────────────────────────────┘
Products
Metadata ┌────┬────────────────────────────────────────┐
│ @3 │ urn:ivcap:schema:order-uses-workflow.1 │
│ @4 │ urn:ivcap:schema:order-placed.1 │
└────┴────────────────────────────────────────┘
As we can see from the above Status executing, the order is now being executed. At some later stage
we can try again:
% ivcap orders get @1
ID urn:ivcap:order:394a877c-1231-4f4f-93f0-93bf738a49e5 (@8)
Name test image order #1
Status succeeded
Ordered 17 hours ago (23 Jun 24 16:18 AEST)
Service hello-world-python (@9)
Account ID urn:ivcap:account:45a06508-5c3a-4678-8e6d-e6399bf27538
Parameters ┌─────────────────────────────────────────────────────────────────┐
│ msg = Hello World │
│ background-img = https://wallpaperaccess.com/full/4482737.png │
│ width = 640 │
│ height = 480 │
└─────────────────────────────────────────────────────────────────┘
Products ┌────┬───────────┬────────────┐
│ @3 │ image.png │ image/jpeg │
└────┴───────────┴────────────┘
Metadata ┌────┬────────────────────────────────────────────┐
│ @4 │ urn:ivcap:schema:order-uses-workflow.1 │
│ @5 │ urn:ivcap:schema:order-produced-artifact.1 │
│ @6 │ urn:ivcap:schema:order-placed.1 │
│ @7 │ urn:ivcap:schema:order-finished.1 │
└────┴────────────────────────────────────────────┘
List Created Artifacts
In "order" lingo the artifacts created by an order are called "products". In the above listing there is only one "product" (@3)
% ivcap artifact get @3
ID urn:ivcap:artifact:aee2decd-... (@4)
Name image.png
Status ready
Size 44 kB
Mime-type image/jpeg
Account ID urn:ivcap:account:45a06508-...
Metadata ┌────┬──────────────────────────────────────────────┐
│ @1 │ urn:ivcap:schema:artifact.1 │
│ @2 │ urn:ivcap:schema:artifact-producedBy-order.1 │
│ @3 │ urn:example:schema:simple-python-service │
└────┴──────────────────────────────────────────────┘
Download Image

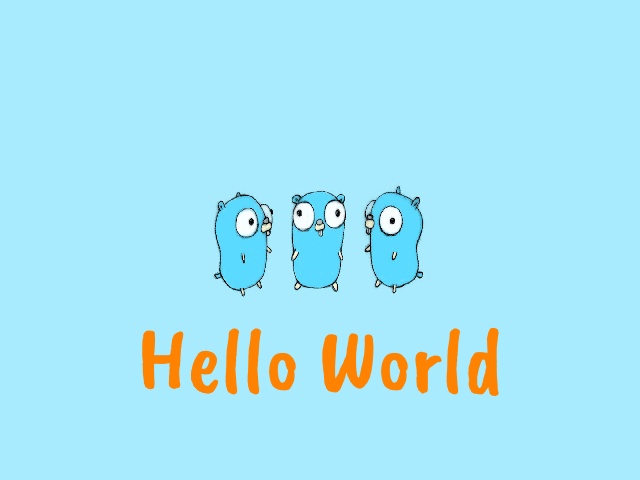

Finally, we can download and view that image:
% ivcap artifact download @4 -f /tmp/image.png
... downloading file 100% [==============================] (1.0 MB/s)
which may look like:
